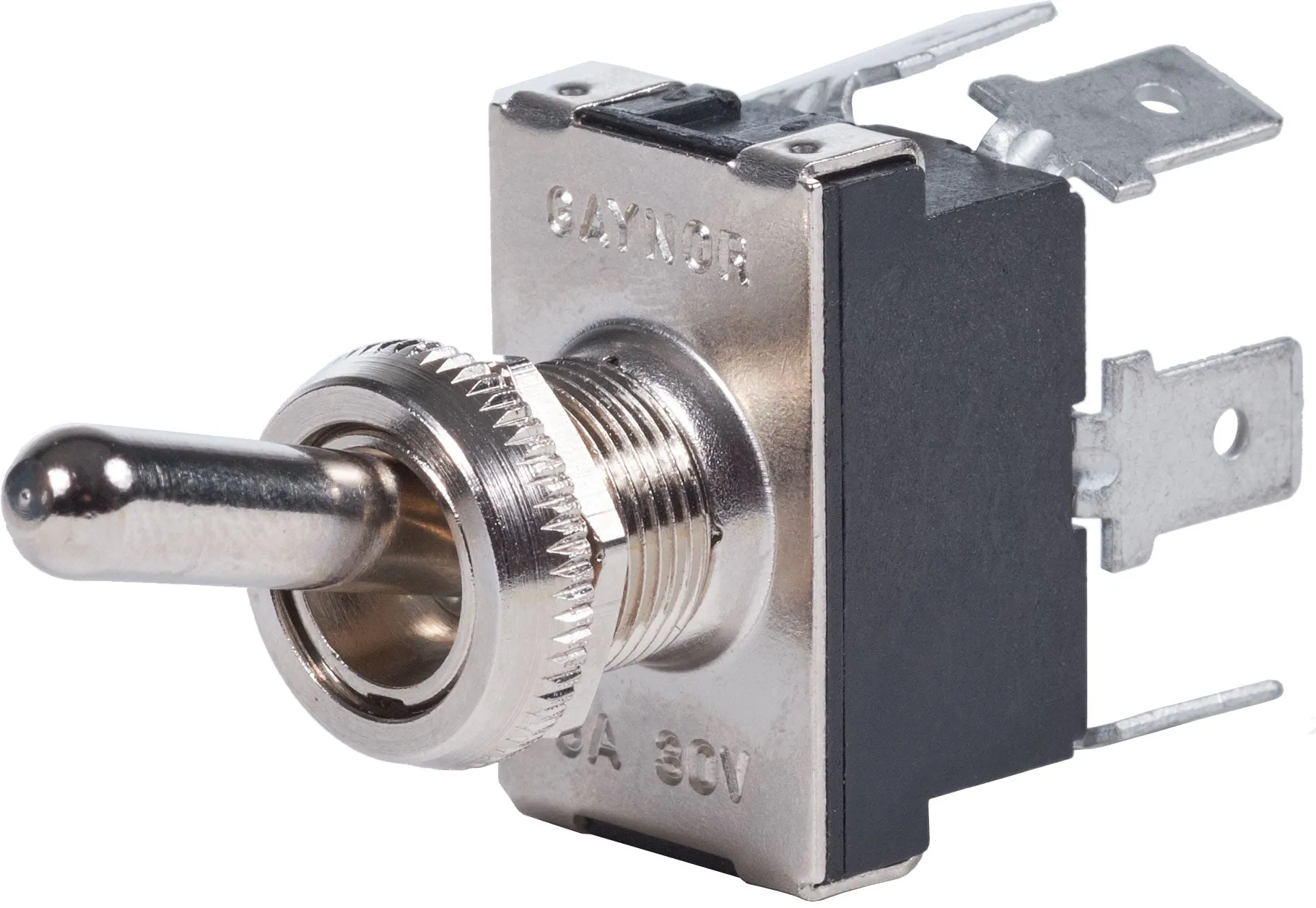

- Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck® Panels
- When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
- Nickel-plated brass and phenolic non-corrosive construction
found here
| Specifications | |
|---|---|
| Action | ON-OFF-ON |
| Pole / Throw | DPDT |
| Poles | 2 |
| Common Applications | combining nav lights with anchor light with shared bulb |
| Maximum Amperage | 5A |
| Maximum Voltage | 30V DC |
| Terminal Type | Quick Connect Tab |
| Number of Terminals | 6 |
| Terminal Size | 0.25in (6.35 mm) |
| Weight | 0.10lb (0.05 kg) |
